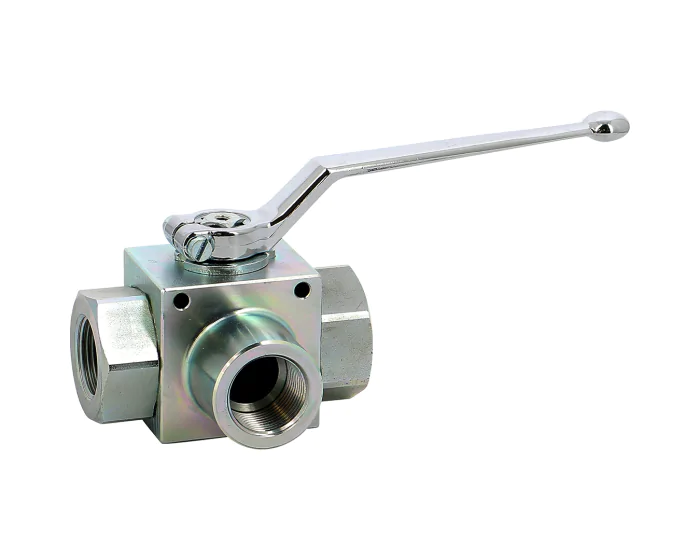

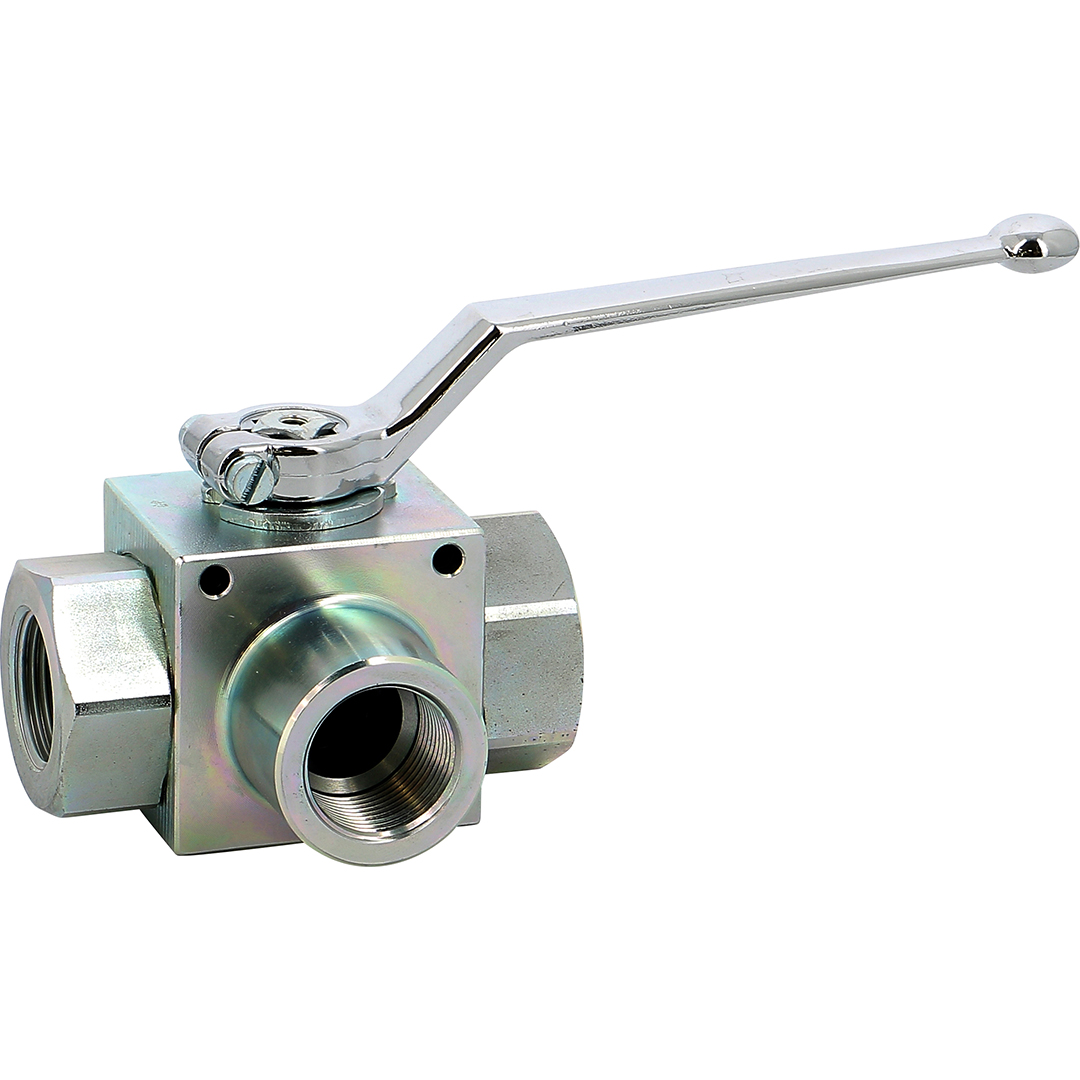

The 721 series ball valve, 3-way high pressure, L port, BSP threaded, reduced bore, steel, POM seat for hydraulic applications, common fluids compatible
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| Thread standard | ISO 228-1 |
| Tightness test standard | API 598 |
| Stem sealing material | NBR O-ring |
| Opening device | Handle |
| Application | Hydraulics |
| Shaft/stem matérial | Carbon steel 1.0737 |
| Torque (Nm) | 16 |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 71.0 |
| Fluid | Hydrocarbons. gas |
| Body material | Carbon steel |
| Number of ways | 3 |
| Bore | Reduced |
| ISO pad 5211 | No |
| PS (bar) | 400 |
| Connections | BSP FF |
| Seats | POM |
| Ball material | Chrome-plated steel 1.0737 |
| TS max (°C) | 100 |
| TS min (°C) | -10 |
| 3-way type | L |
| Ball valve design | 3-way |
| Warranty period | 2 years |
| Handle material | Aluminium |
| Handle type | Yellow lever |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Carbon steel Reduced 3-way 1/4'' | 721002 | S1007821 |
€38.51
(excl. btw)
|
add to cart |
| BSP FF Carbon steel Reduced 3-way 3/8'' | 721003 | S1007822 |
€40.47
(excl. btw)
|
add to cart |
| BSP FF Carbon steel Reduced 3-way 1/2'' | 721004 | S1007823 |
€43.33
(excl. btw)
|
add to cart |
| BSP FF Carbon steel Reduced 3-way 3/4'' | 721005 | S1007824 |
€77.83
(excl. btw)
|
add to cart |
| BSP FF Carbon steel Reduced 3-way 1'' | 721006 | S1007825 |
€87.71
(excl. btw)
|
add to cart |
